Asphalt Pavers Machine Control Systems



Multispot Grade Control solution for Asphalt pavers in Australia


Moba Matic 2 Machine Control

MOBA-matic has firmly established itself as the world's leading and most flexible leveling system for pavers. This modular system enables to control the layer thickness and the slope of the screed. It allows the flexible choice of sensors, depending on the application and the jobsite. For example ultrasonic sensor, rotary or slope sensor.

This system is easy to install and simple to operate. Using just four main buttons, all important functions can be controlled, as well as the height and slope of the paver screed, adjusted. This increases the paving output of the machine, preventing  the paving of too little or too much material, thus increasing  the paving quality and planarity.

Big Sonic Ski

The Big Sonic-Ski® exceeds the advantages of a single ultrasonic sensor. With up to four sensors, even in a large area unevennesses, such as road waves, all is compensated for. The Big Sonic-Ski® thereby achieves maximum planarity during asphalt paving, being unrivaled in its precision. The individual sensors can each be positioned separately.

Features

  • Controls the height and slope of the paving screed

  • Offers the world's largest selection of sensors for leveling systems

  • Flexible sensor combination

  • Simple operation

  • Can be adapted to any machine (hydraulics)

  • Highly precise paving results

  • String-line or ground sensing

Big Sonic Ski Benefits

  • No artificial reference necessary

  • Best possible planarity

  • Compensates for long stretches of reference unevenness

  • No artificial reference necessary

  • Works contactlessly

  • Largely independent from weather conditions

MOBA-MATIC II SYSTEM COMPONENTS


Pave IR System


INTELLIGENT PAVING – THERMAL REAL-TIME VISUALIZATION FOR THE ASPHALT PAVING OF THE FUTURE

The optimal temperature of the installation material is a decisive factor in road construction, on which the quality of the road significantly depends. A thermal visualization of the installation process provides important insights into the quality of the material and opens up completely new optimization potentials.

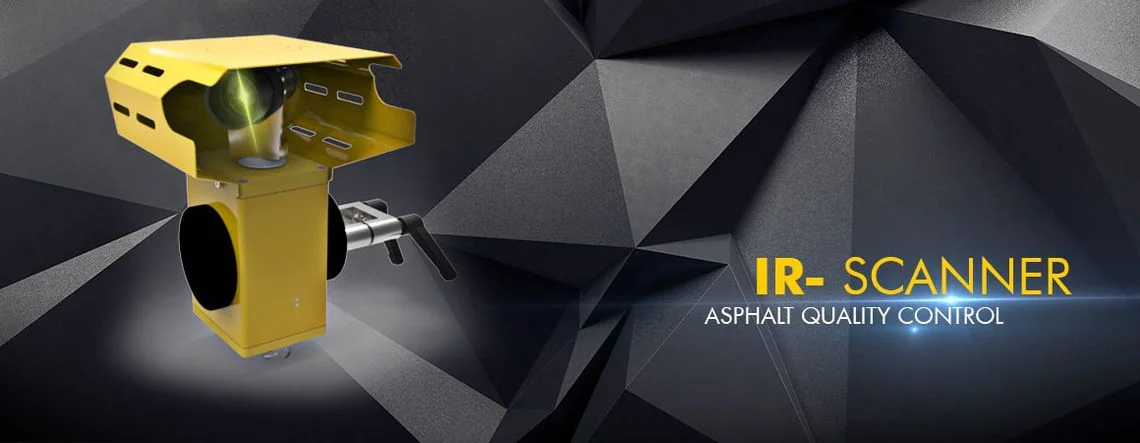

PAVE-IR is the first system to simply and clearly create a thermal profile of the road - in real time! The high-precision IR temperature scanner MTPS-100 provides a wide thermal profile of the built-in layer over a total width of up to 13m, which can optionally be used as evidence for all installation and supply temperatures. The fully automatic visualization of the temperature thus offers the possibility to detect individual points which might be affected by thermal segregation, and to react immediately!

Up to four further freely positionable high-performance sensors (IR spots) additionally measure material temperatures exactly at all points where temperature is critical, whether at the hopper, above the ground or at the screw.

This multiple measurement provides extensive, high-precision values. It thus is possible to assess the temperature of the delivered material in real time and, if necessary, to document it. Differences in the temperature of the installation material thus are visible during the entire process. As a result, measures can immediately be taken if necessary.

The unique IR technology of the scanner offers the decisive advantage of being able to accurately determine the temperature of the asphalt surface and the material.

The acquisition over a width of up to 13m is technically superior to camera-based solutions on the market.

Due to its modular concept, PAVE-IR is compatible with every paver - regardless of manufacturer and age of the machine.

The core competences of the system exist of three functionalities: the high-precision data acquisition with innovative cloud solution linked to open interfaces for current asphalt logistic and process systems, as well as a highly scalable reporting system. This combination is an unique selling point on the market as it covers the entire temperature visualization process, from measurement to evaluation.

With the automatic temperature measurement, the intuitive panel and the self-explanatory temperature profiles, PAVE-IR is an innovative tool that shows optimization potentials - without additional expenses for the installation team! The decisive progress in addition to the comprehensive visualization and documentation of temperature measurement data, is the inter-connectivity of the paver - the first cornerstone for the construction site of the future.

As an innovative tool and component of the ‘Intelligent Paving’ product line of MOBA Mobile Automation AG, PAVE-IR thus is an important element for the interconnected construction site of the future and significantly contributes to the longevity of the road.

Its development and its daily use on construction sites around the world is just another proof that digitalization 4.0 has already arrived at the construction site.

The road building expertise of more than 40 years of experience paired with the innovative power of a globally networked company make MOBA Mobile Automation the pioneer of road construction in the future. Become part of this future and let us advise you on this technology without Obligation.

System Features:

  • Extensive, high-precision measurement of
    the material temperature to detect thermal segregation

  • Real-time detection and analysis of temperature values

  • Modular design with individually combinable and upgradeable components

  • Detailed thermal profile of the asphalt layer

  • Cloud solution for easy data handling

  • Open interfaces for suppliers
    of logistics and optimization solutions

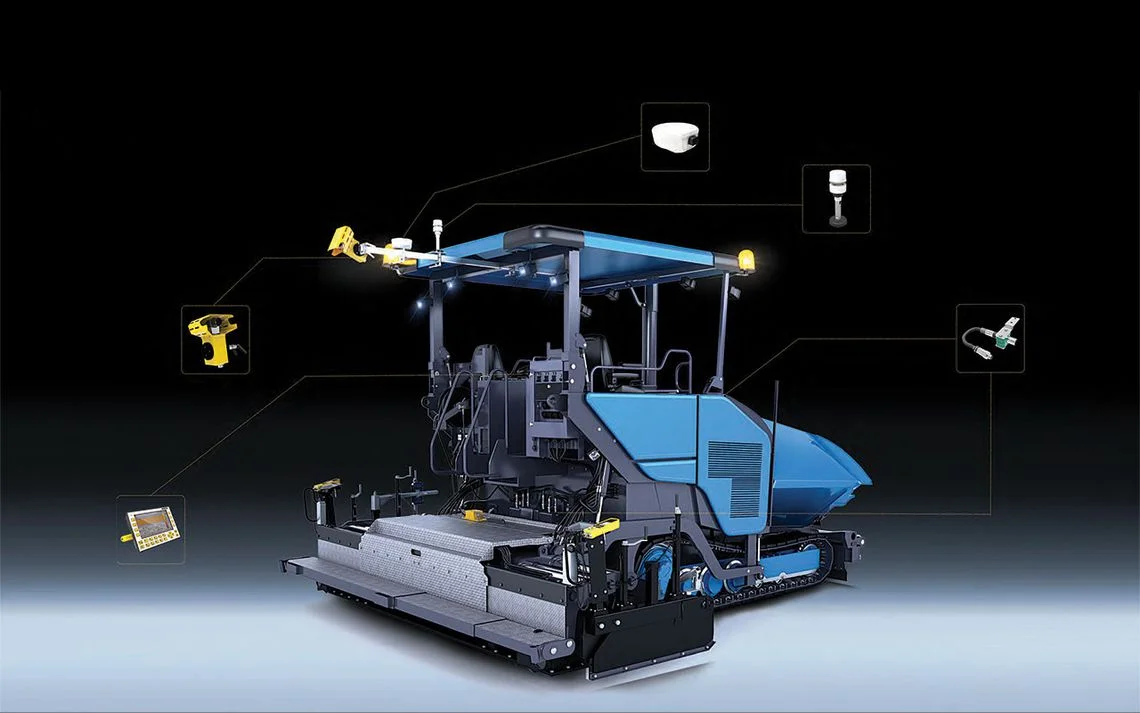

PAVE-IR SYSTEM COMPONENTS
