Tractors, Scrapers and Grader Blades Machine Control Systems



LASER LAND LEVELING (LLS)


MOBA 2D and 3D machine control system for Kilver and Dirt Pan Scrapers

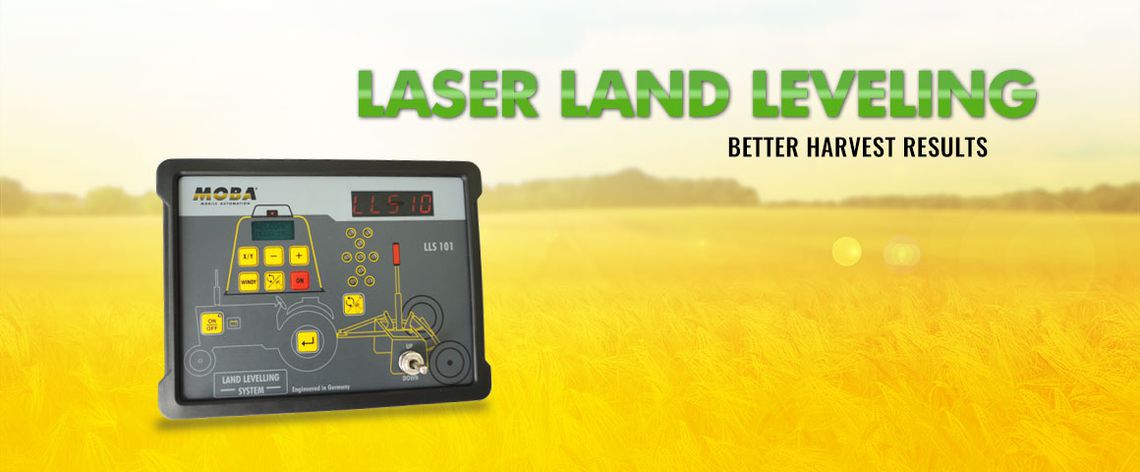

BETTER HARVEST RESULTS WITH LASER BASED PRECISE LAND LEVELING SYSTEM (LLS)

A common problem in agriculture is uneven land that prevents an even water and fertilizer coverage, which results in uneven crop stands,  uneven maturing crops and increased weeds. As a consequence, farmers report reduced crop yield and grain quality. The solution to prevent such undesired outcomes is easy: effective land leveling.

Effective land leveling will optimize water-use efficiency, improve crop establishment and reduce irrigation time and effort required to manage crop. The result is a 25% better crop growth!

With our easy to use laser guidance control system LLS you get the right solution to get a smooth soil surface  and a uniform distribution of water and soil moisture. It has a unique feature which enables the operator to change the laser reference and operate the complete transmitter from the control box itself. This remote connection has a working range of 250 meter.

The system layout is simple and is designed specifically for single channel laser receiver with ON/OFF Output capable of driving just one hydraulic cylinder.

Features

  • Easy to use

  • Resettable timer which allows to measure leveling time

  • RF remote control unit lets you operate
    the transmitter while driving the tractor

  • Usable for zero slope, single slope and Dual slope

  • Rugged mounting solution via ram mount

  • Water proof technology

  • Better crop growth (up to 25%)

  • Save working time and man power

  • Prevents land of being barren

  • Minimum use of seeds, fertilizers

  • More control over weeds

LLS SYSTEM COMPONENTS




MOBA LASER-MATIC AND DUAL LASER-MATIC



MOBA 2D and 3D machine control system for Kilver and Dirt Pan Scrapers

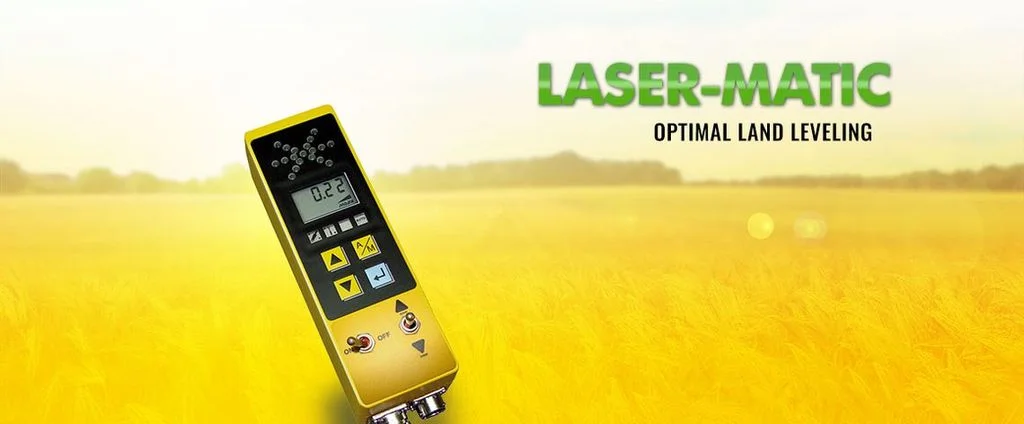

MOBA LASER-MATIC AND DUAL LASER-MATIC

Grading plays a significant role in agriculture. On an even cropland, plants can equally be planted, watered and fertilized. Those efficient work processes not only save considerable time but also conserve resources. Through an optimized irrigation and fertilization, also a steady growth is ensured. The farmer thus benefits from an increase in growth of up to 25%!

In other sectors, precise leveling is even important. In road construction, unevenness is hindering a uniform, efficient asphalting and in turn a safe driving experience. Also, in the construction of sports facilities or airfields, a flat surface is essential.

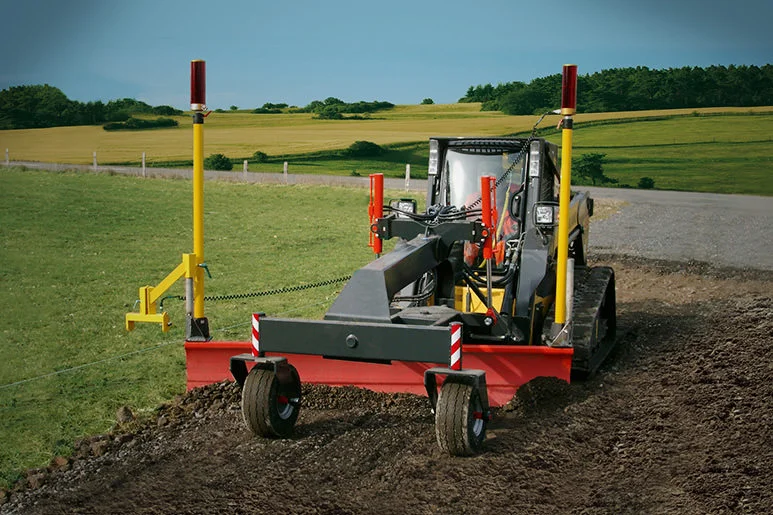

With the MOBA Laser-matic, surfaces can be easily and precisely levelled. The Laser Receiver LS-3000, which is located on the variable Electronic Mast ETM-900, receives height references of a stationary laser transmitter. The accurate topographic measurement and hydraulic control carries out the Laser-matic Digital Controller. The height of the kilver, scraper or grader thereby automatically adapts to the received information – in real time! Due to the remarkable length of the laser receiver of 30cm it is always optimally connected to the laser.

The wide range allows the ride through rough terrain, without the two losing contact. The operator thus saves considerable time since he or she does not have to constantly adjust the height of the laser receiver.

The Dual Laser Matic, extended version of the Laser-matic, has two laser receivers and a slope or ultrasound sensor. The height reference of the stationary laser transmitter thus is simultaneously transmitted to two different laser receivers, thereby determining even more precise data. Leveling conducted by the Dual Laser-matic, in turn, is even more accurate. Using the slope or ultrasound sensor, the slope of the machine can be maintained steadily which is used to precisely implement a predetermined profile.

With leveling technology, the foundation of MOBA was laid 40 years ago.

Many years of experience in the market have resulted in an in-depth knowledge on which conditions a proper levelling technology needs to fulfill. Especially in grading, harsh weather conditions can significantly complicate work. Therefore, all electronic systems by MOBA exist of particularly robust parts. Additionally, they are equipped with a specially developed potting technology, which protects them from wind, water, dust and vibrations at all times. More flexibility is reached by different pre-programmable hydraulic configurations that allow a time-efficient change between different machines.

The equipment with a CAN-based technology also ensures a trouble-free upgrade or convenient replacement of all sensors anytime. The lifetime of the Laser-matic is thereby considerably extended.

Features

  • Easy to use

  • Re-settable timer which allows to measure leveling time

  • RF remote control unit lets you operate
    the transmitter while driving the tractor

  • Usable for zero slope, single slope and Dual slope

  • Rugged mounting solution via ram mount

  • Water proof technology

LASER-MATIC SYSTEM COMPONENTS



HIGH PERFORMANCE GRADE AND SLOPE CONTROL

With the MOBA 3D machine control system, dozers achieve highly precise results. This machine control system is easy to operate and use. The work process is accelerated, making surveying work and manual control measurements are no longer necessary. Data can be sent directly from the office to the system, then implemented.

On the well-organized 7 inch touch-screen display, the driver sees the actual position and the derivation to the digital model. If no project data is availabe, simple profiles can also be created with the system.

Use with total station: precise leveling is possible even where there is no satellite reception (i.e. in tunnels, as only visual contact from the prism to the total station is ensured). With the total station, the system achieves maximum accuracy in the millimeter range.

Use with GNSS sensor: precise leveling is possible even without visual contact, and in all weather conditions. There are no restrictions, since the machine can be flexibly moved in difficult terrain.

SYSTEM FEATURES

  • Works with both the total station and with GNSS

  • Two processors (panel and controller) for maximum performance

  • Intuitive operation

  • Data transfer via USB

  • Robust design

  • Add-on system that can also be retrofitted

MOBA 3D-MATIC SYSTEM COMPONENTS
